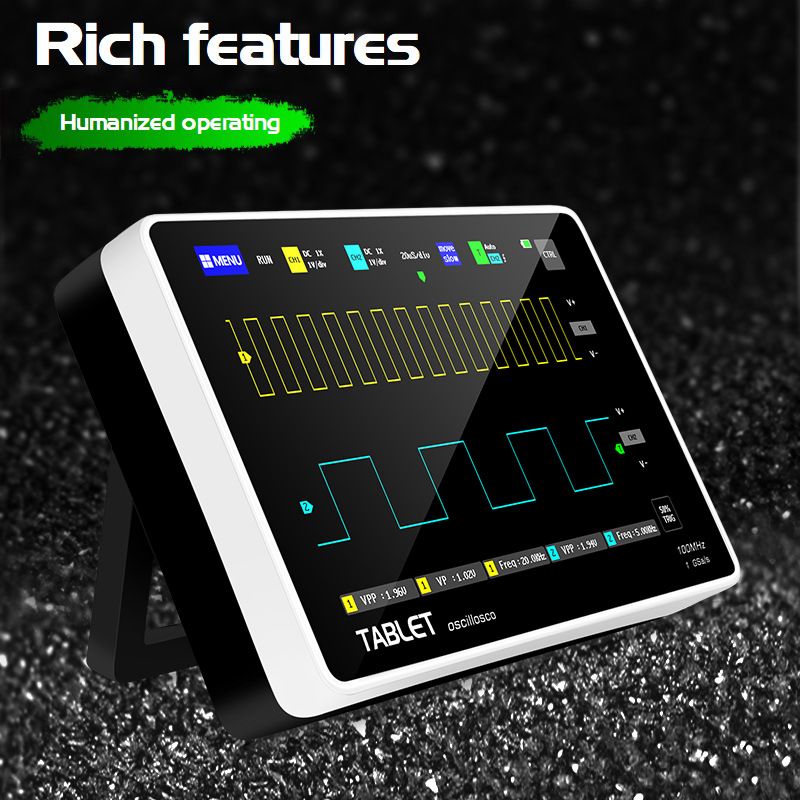

Fnirsi 1013d Dual Channel Digital Touch Panel Oscilloscope

Overview:

FNIRSI-1013D is a dual-channel flat panel oscilloscope launched by FNIRSI, which is fully functional, practical and cost-effective.
Maintenance and R&D industry; the oscilloscope has a real-time 1GSa/S sampling rate and 100MHz*2 analog bandwidth. With a complete trigger function (single/normal/automatic), you can use the periodic analog signal or aperiodic digital signal freely; this built-in high-voltage protection module can withstand continuous voltage up to 400V.
The accident probe of the oscilloscope burnt out is turned to the 10X position. Large time base scrolling mode can
Monitor slow level changes; equipped with high-efficiency one-key AUTO, which can display measurement waveforms without cumbersome adjustments; the display is equipped with a 7-inch 800*480 resolution high-definition LCD screen, and the operation method is capacitive screen touch + gesture operation, which is extremely convenient ；
Cursor measurement function, without reading the background scale, manually reading the unit and quantity parameters of the amplitude and frequency, you can directly get the peak value, peak value and frequency without conversion; extremely convenient screenshot and waveform storage function, built-in 1GB storage space, up to storage 1000 screenshots + 1000 sets of waveform data, the storage process is simple and fast, save the current waveform anytime, anywhere
One-key touch, no cumbersome prompts and choices, keep calm and save the current data in this location. This is very convenient: the powerful waveform picture manager supports thumbnail browsing.
View, detailed view, page turning, delete and waveform zoom in, zoom out, and move. Etc... in order to facilitate the secondary analysis. The body is equipped with a USB interface, which can be connected to a computer and share its screenshots with the computer, even in the second analysis;
Li Shayu’s graphic display function can be used to determine the amplitude, frequency and phase contrast of two sets of signals; harmonic component analysis signal; built-in 6000mah high-quality lithium battery. Can last
Fully charge in 4 hours. Can be used while charging like a laptop

Product information:

Model：FNIRSI- 1013D
Highest test：1X:40V10X:400V
voltage：2Channels
Cursor：Position XY Trigger Y
LCD size：7 Inch
Resolution：800★480

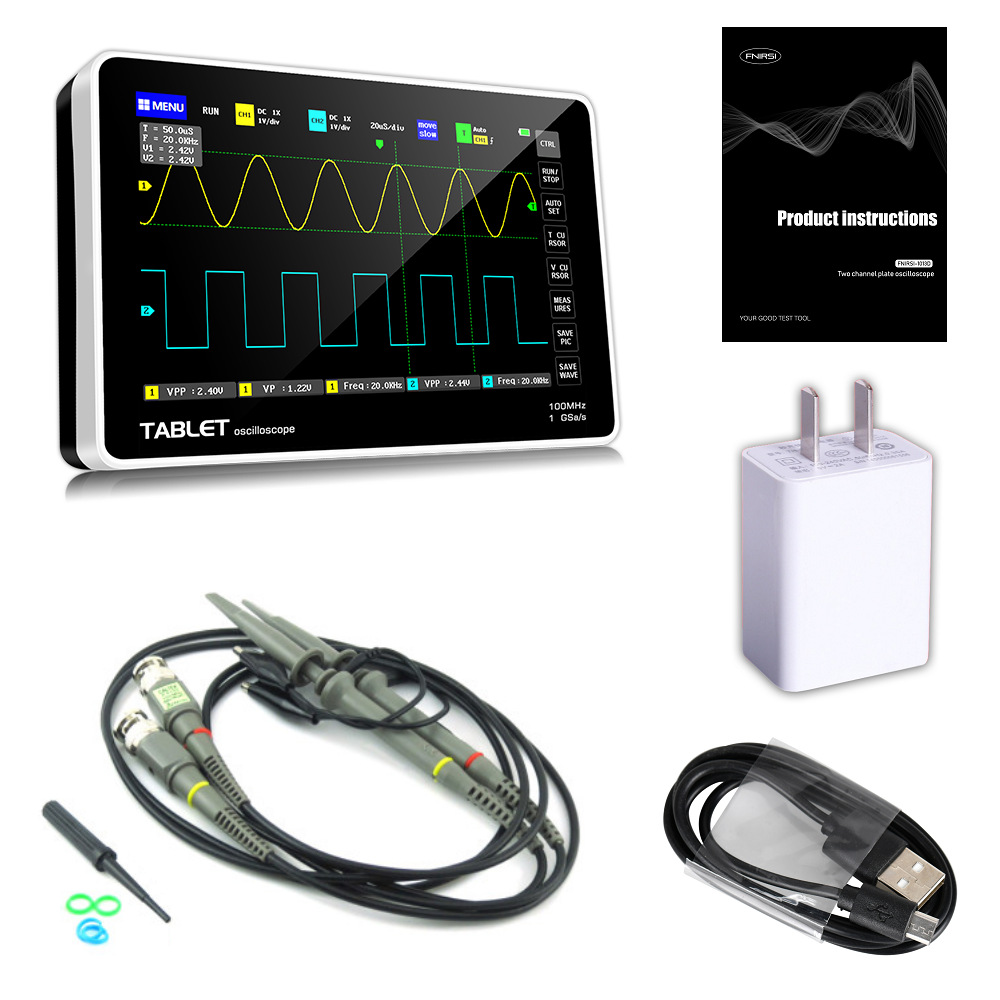

Package Content:

1* Digital touch panel oscilloscope
